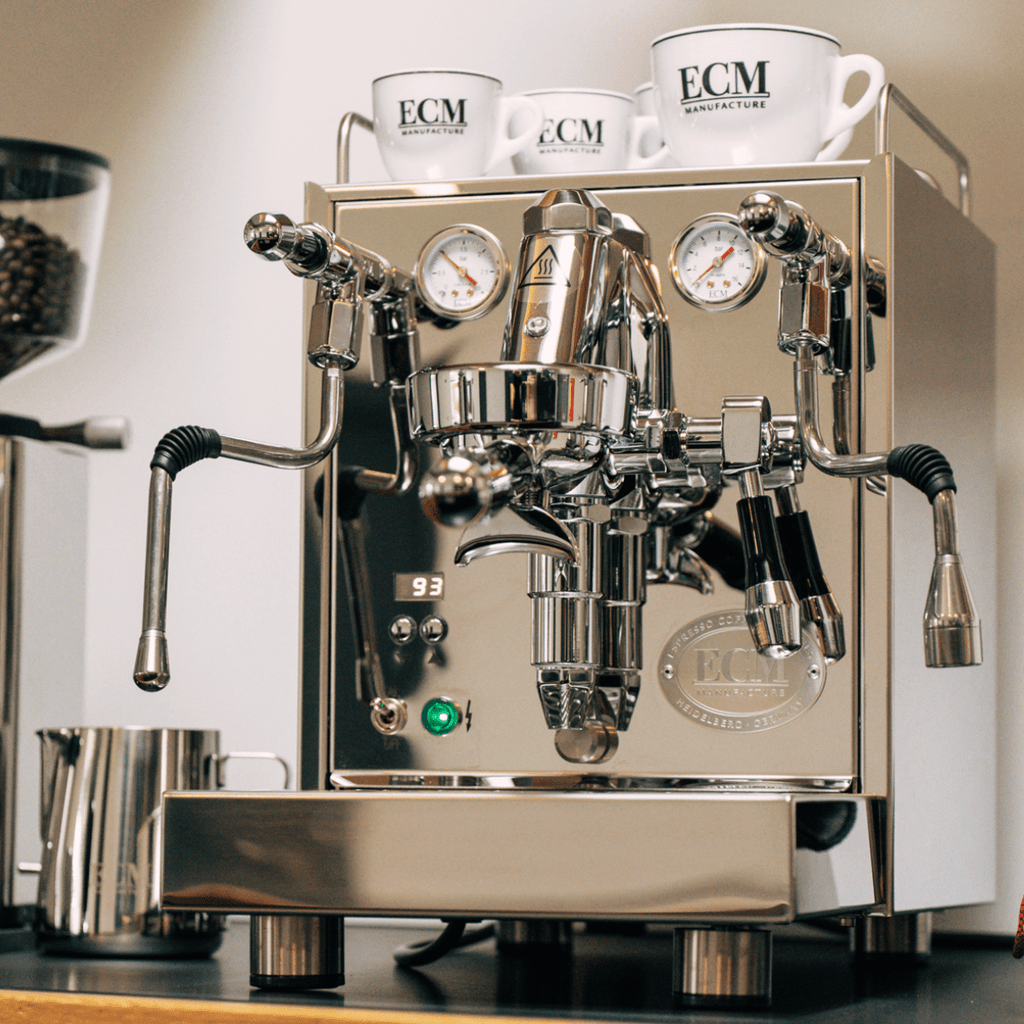

ECM - Mechanika Max

Overview

The ECM Mechanika Max represents the perfect balance of German precision and modern espresso innovation. Built around a rotary pump and a robust heat exchanger system, it delivers reliable performance with the quiet elegance ECM is known for.

A standout feature is Smart HX® technology, which offers two approaches to temperature control:

• In brew temperature control mode, the machine automatically regulates brewing temperatures without requiring flushes or guesswork.

• In standard mode, the flush advisor guides you through a quick cooling flush to reach the ideal brew temperature.

At its core is the ECM-customized E61 grouphead, engineered for durability and consistently excellent extraction. A PID controller with smart features—like adjustable pre-infusion—adds precision and versatility to your workflow. Meanwhile, the quiet rotary pump makes brewing smooth and serene, without sacrificing power.

The Mechanika Max adapts easily to your setup with the option to use its 3 L water tank or connect directly to a water line. Professional steam and hot water lever valves, paired with its 1.9 L stainless steel heat-exchange boiler, deliver exceptional steaming capacity. With ergonomically angled ECM portafilters, the experience is not only professional but also comfortable.

Features

• Smart HX® Technology – Choose between automatic brew temperature control or guided flush mode for perfect results.

• ECM-Customized E61 Grouphead – Classic design, refined for optimal performance and longevity.

• PID Controller – Offers user-friendly smart features, including adjustable pre-infusion.

• Rotary Pump – Quiet and efficient, ensuring smooth operation.

• 1.9 L Heat Exchange Boiler – Stainless steel construction with strong steam power and lever valves for professional handling.

• Water Source Flexibility – Operates with either the integrated water tank or direct plumb-in connection.

What’s in the Box

• Single-spout portafilter

• Double-spout portafilter

• 7 g single basket

• 14 g double basket

• Backflush disc

• Tamper

• Group cleaning brush

• Plumb-in kit

Technical Specifications

• Weight: 23.5 kg

• Height: 40.5 cm

• Width: 27.5 cm

• Depth: 44.5 cm

• Brew Group: ECM E61

• Boiler Volume: ~1.9 L

• Boiler Material: Stainless steel

• Water Tank Capacity: ~3 L

• Pump Type: Rotary

• PID Control: Yes

• Boiler Pressure Gauge: Yes

• Water Source: Tank or direct plumb-in

• Cup Warmer: Removable tray

• Included Portafilters: 2
